CPU / Microprocessor |
| Market segment |
Mobile |
| Family |

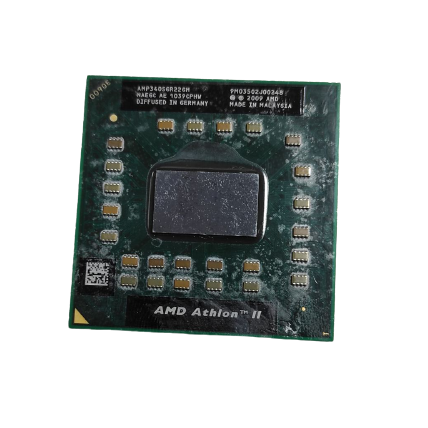

AMD Athlon II Dual-Core Mobile |
| Model number ? |
P340 |
| CPU part number |
- AMP340SGR22GM is an OEM/tray microprocessor
|
| Stepping codes |
NAEGC AE NAEKC AE |
| Frequency ? |
2200 MHz |
| Bus speed ? |
One 1600 MHz 16-bit HyperTransport link (3.2 GT/s) |
| Clock multiplier ? |
11 |
| Package |
638-pin lidless organic micro Pin Grid Array (UOL638) |
| AMD Package number |
30600 |
| Socket |
Socket S1 (S1g4) |
| Size |
1.38" x 1.38" / 3.5cm x 3.5cm |
| Weight |
0.2oz / 5.6g (measured)
0.2oz / 6.5g (by specifications) |
| Introduction date |
September - October 2010 |
| End-of-Life date |
Last order date is end of 1st quarter 2011 [1] |
| Architecture / Microarchitecture |
| Microarchitecture |
K10 |
| Platform |
Danube |
| Processor core ? |
Champlain |
| Core stepping ? |
DA-C3 |
| CPUID |
100F63 |
| Manufacturing process |
0.045 micron silicon-on-insulator (SOI) technology |
| Data width |
64 bit |
| The number of CPU cores |
2 |
| The number of threads |
2 |
| Floating Point Unit |
Integrated, 64-bit wide |
| Level 1 cache size ? |
2 x 64 KB 2-way set associative instruction caches
2 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? |
2 x 512 KB 16-way set associative caches |
| Level 3 cache size |
None |
| Cache latency [2] |
3 (L1 cache)
15 (L2 cache) |
| Multiprocessing |
Uniprocessor |
| Features |
- MMX instructions
- Extensions to MMX
- 3DNow! technology
- Extensions to 3DNow!
- SSE / Streaming SIMD Extensions
- SSE2 / Streaming SIMD Extensions 2
- SSE3 / Streaming SIMD Extensions 3
- SSE4a ?
- AMD64 / AMD 64-bit technology ?
- EVP / Enhanced Virus Protection ?
- AMD-V / AMD Virtualization technology
|
| Low power features |
PowerNow! |
| Integrated peripherals / components |
| Integrated graphics |
None |
| Memory controller |
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1066, DDR3L-1066
Maximum memory bandwidth (GB/s): 17.1 |
| Other peripherals |
HyperTransport technology 3.0 |
| Electrical / Thermal parameters |
| Thermal Design Power ? |
25 Watt |
